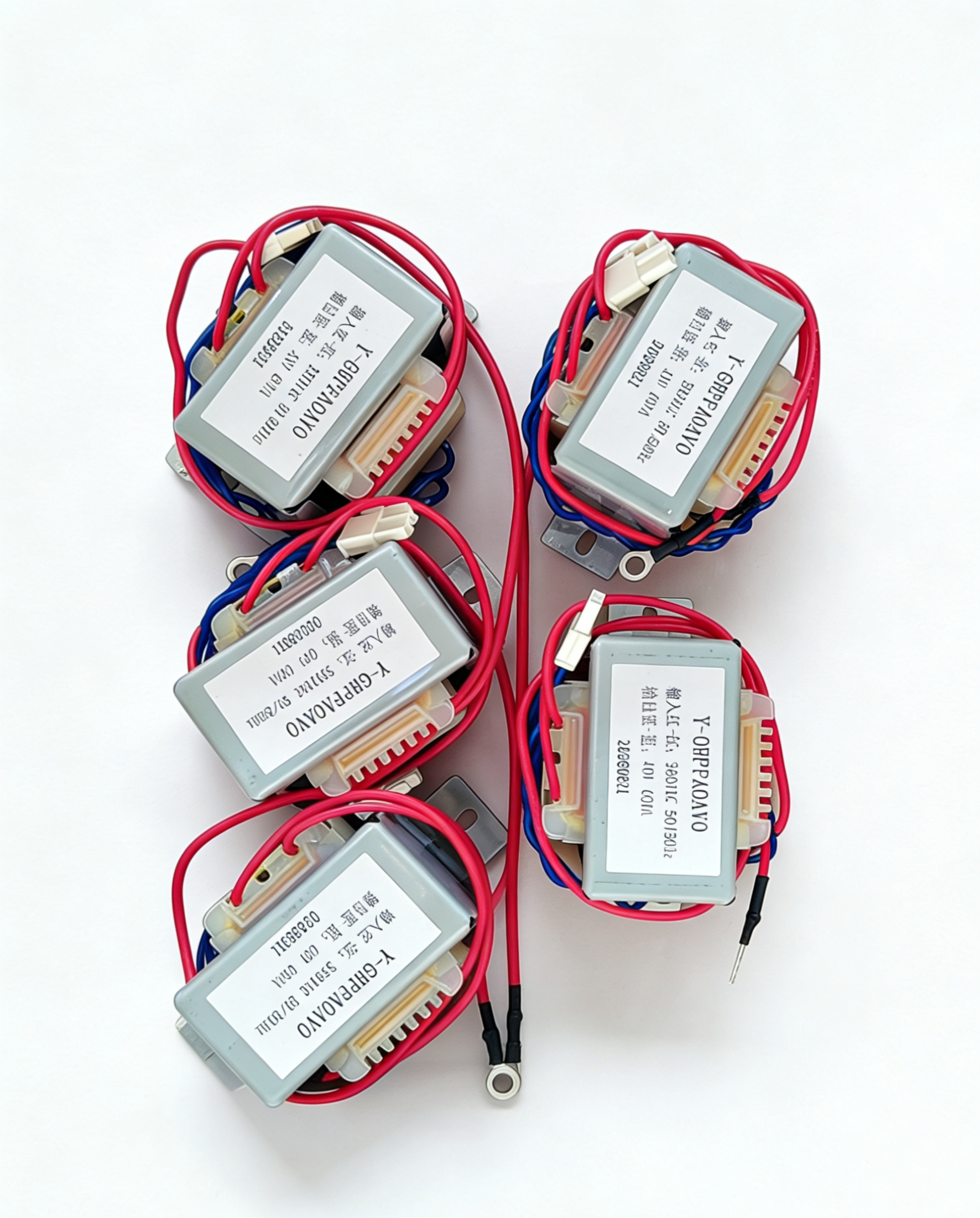

Famous Low Frequency Clamping Frame Transformer Manufacturer, Manufacturers

Low Frequency Clamping Frame Transformer for industrial control systems.PCB transformer,PCB installation friendly type. High efficiency, low loss, and strong insulation performance. Designed with durable dry-type structure for long-term operation. Suitable for automation, machinery, and small household appliances Custom design and OEM service supported.

Send Inquiry

Product Description

Model	Power (W)	Outline dimensions						Certificate
Model	Power (W)	L	W	H	A	B	Hole (C*D)	VDE	UL	CQC	CE
DB2812Series	0.5-1	30	30	27	38.5	48	3.3*7.7	-	-	●	●
DB3514Series	1.2-1.5	37	31	32	45	57	4.2*7.2	-	-	●	●
DB4116Series	3-4	43	35	35	52	61	4*6	-	-	●	●
DB4120Series	4.5-6	43	39	35	51.5	62	4.5*5.3	-	-	●	●
DB4124Series	6-8	43	44	35	53.5	65	4.5*7	-	-	●	●
DB4835Series	15-18	50	55.5	42	68	82	4.1*7.5	-	-	●	●
DB5740Series	30-35	60	65	50	72	85	4*8	-	-	●	●
DB6644Series	50-60	68	75	58	83	98	3 holes 4.3*8	-	-	●	●

Typical Applications

Medical equipment
Housekeeping appliance
Instruments and Apparatuses
Electronic equipment
PCB boards

Including: Humidifier, Air purifier, Washing machine, Air conditioner, Refrigerator, Dishwasher, Water dispenser, Coffee maker, Range hood, Rolling shutter door, Temperature controller, Electric grinder, Gas alarm, Garage door, Traffic signal light equipment, Outdoor light power equipment.
