Custom High frequency encapsulated transformer XPKG13158 Manufacturers, Company

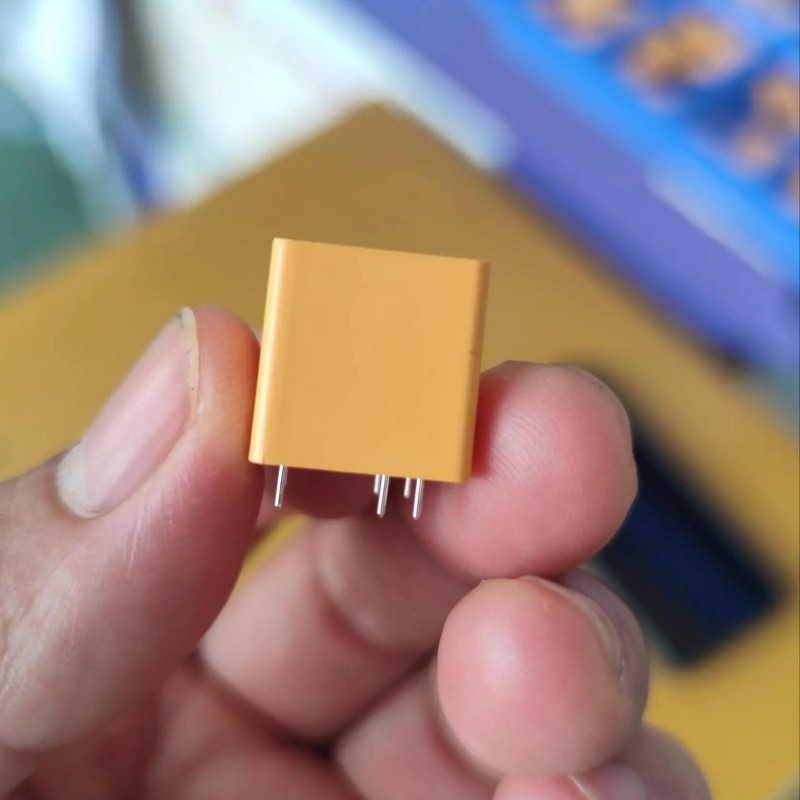

The XPKG131588 is a compact high-frequency switching transformer specifically designed for modern switching power supply applications. Operating at high frequencies significantly reduces transformer size while improving conversion efficiency. Unlike conventional transformers, the XPKG131588 adopts a vacuum epoxy potting process that completely encapsulates the winding and magnetic core. This process greatly enhances insulation strength, moisture resistance, vibration resistance, and thermal conductivity while minimizing electromagnetic interference and acoustic noise. Its compact design makes it suitable for PCB mounting in industrial electronic equipment where reliability and long service life are essential.

Send Inquiry

Product Description

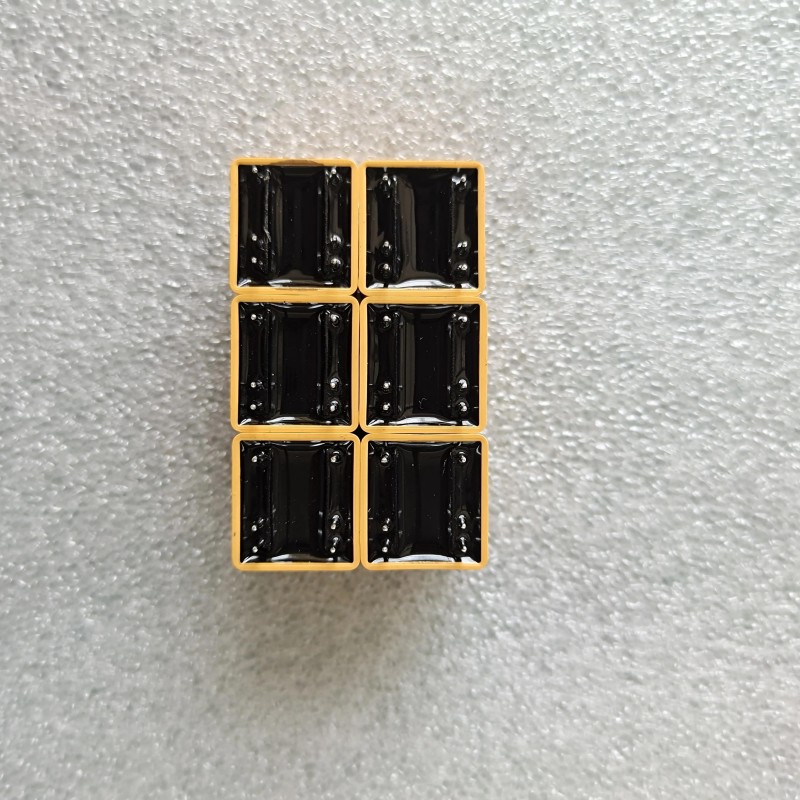

Vacuum Epoxy Potting

Completely sealed structure protects internal windings against moisture, dust, vibration, and mechanical impact.

Item	Specification
Product Code	XPKG131588
Product Type	High Frequency Switching Transformer
Core Type	EE13 Ferrite Core
Working Frequency	100kHz
Inductance	1.722mH ±10%
Leakage Inductance	≤172.2μH
Hi-Pot Test	AC 4.0kV
Potting Technology	Vacuum Epoxy Potting
Mounting Type	PCB

Why Choose Vacuum Potting Transformers?

Superior electrical insulation
Excellent heat conduction
Moisture and dust protection
Shock and vibration resistance
Low acoustic noise and stable inductance

Typical Applications

The XPKG131588 transformer is widely used in Industrial Switching Power Supplies, Medical Devices, Solar Inverters, and Smart Home Controllers.

Frequently Asked Questions

1. What is the main advantage of vacuum potting? Provides superior protection against moisture, dust, and mechanical vibration while enhancing heat dissipation.

2. Is this transformer suitable for high-frequency applications? Yes, it is optimized for switching power supplies operating around 100kHz.

3. Can you customize the pin configuration? Yes, we offer full customization services for pins, dimensions, and electrical specifications.

4. What quality standards do you follow? We perform 100% electrical testing and high-voltage withstand tests to ensure compliance with international safety standards.

5. Are these transformers lead-free? All materials are selected to meet modern industrial environmental and safety regulations.
