China Inverter/servo direct matching DC smoothing reactor Factory, Factories

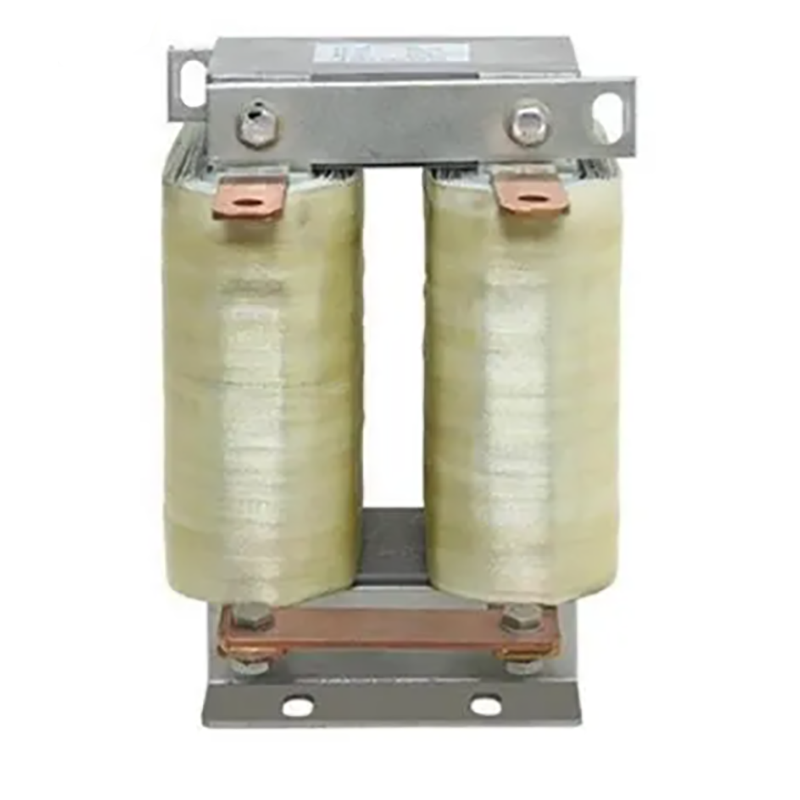

DC Smoothing Reactor for Inverter & Servo Directly matched with inverters and servos, filters ripple current, stabilizes DC voltage, reduces noise & interference. Protects power devices, enhances system stability and reliability.

Send Inquiry

Product Description

Type Selection Table

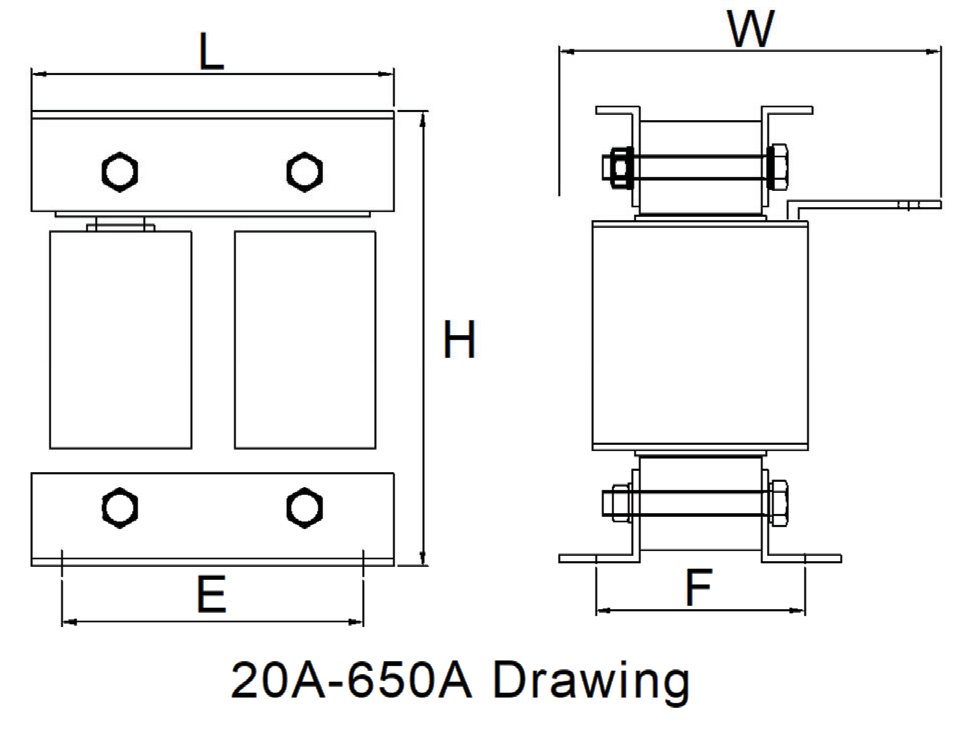

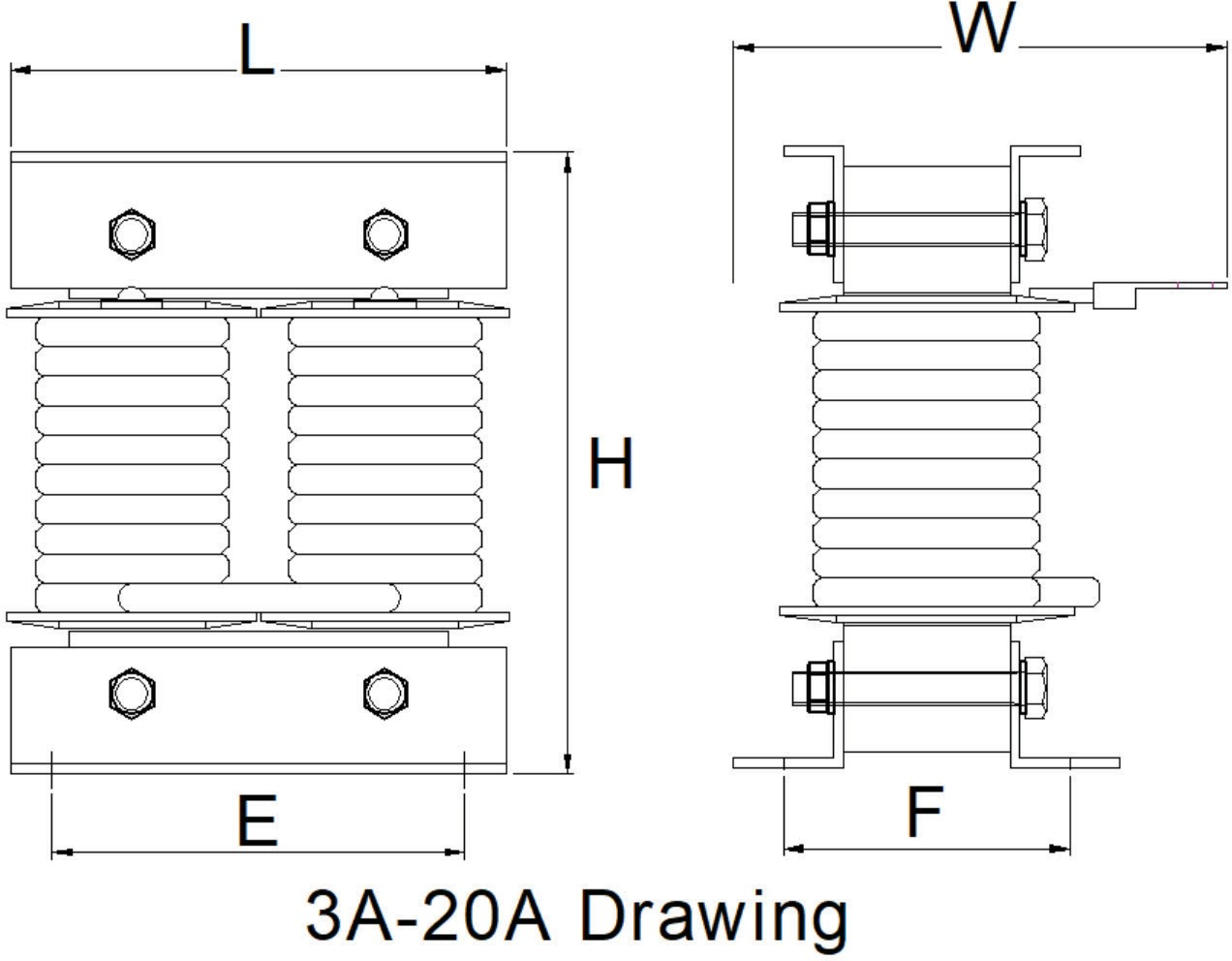

Model	Power (KW)	Inductance (mH)	Rated Current (A)	L	W	H	E*F
3A	0.4/0.75	28	3	115	130	110	90*70
6A	1.5/2.2	11	6	115	130	110	90*70
12A	3.7/4.0	6.3	12	115	130	110	90*70
23A	5.5/7.5	3.6	23	115	140	110	90*80
33A	11/15	2	33	115	140	110	90*80
40A	18.5	1.3	40	115	150	110	90*90
50A	22	1.08	50	115	160	110	90*100
65A	30	0.8	65	132	165	120	110*100
78A	37	0.7	78	150	170	140	122*110
95A	45	0.54	95	150	170	140	122*110
115A	55	0.45	115	150	180	140	122*120
160A	75	0.36	160	150	160	190	120*85
180A	90	0.33	180	150	170	190	120*95
250A	110	0.26	250	180	190	220	135*105
290A	132	0.22	290	180	195	220	135*105
340A	160	0.17	340	180	200	220	135*115
460A	185	0.09	460	200	190	270	135*105
490A	220	0.08	490	200	195	270	135*105
650A	300	0.07	650	200	200	270	135*115

Note: The above specifications are standard; performance, size, and appearance can be customized.

Rated Voltage:	400VDC~1000VDC
Rated Current:	2A-900A
Insulation Class:	F or above
Reactor Impedance:	2%
Ambient temperature:	-25℃ to 40℃
Protection Category:	IP00
