Best Three phase AC Type input reactor Suppliers, Exporter

Three-Phase AC Input Reactor Filters harmonic interference, suppresses surge current, improves power factor and grid compatibility. Protects inverters & drives, enhances system stability for industrial automation.

Send Inquiry

Product Description

Type Selection Table

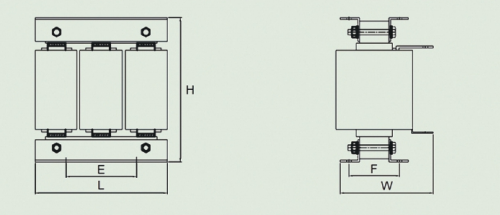

Model	Power (KW)	Inductance (mH)	Rated Current (A)	Dimensions (LWH)	Installation (E*F)
5A	1.5	2.80	5	160120140	80*60
10A	3.7	1.40	10	160120140	80*60
20A	7.5	0.70	20	160120140	80*60
50A	18.5	0.28	50	160130140	80*75
100A	40	0.14	100	290230310	135*95

Note: Specifications are standard; performance, size, and appearance can be customized.

These reactors effectively restrain harmonic current, improve power factor, mitigate voltage surges, reduce grid interference, and balance phase voltages.

Technical Data

Rated Voltage: 380V/440V
Operation Frequency: 50/60HZ
Rated Current: 3A-1600A
Hi-pot Test: 3.5kV, 60sec
Insulation Class: F or above
Reactor Impedance: 2%

Frequently Asked Questions

What is the primary function of an AC reactor? They are designed to restrain harmonic currents and improve the power factor of electrical systems.

Can the product dimensions be customized? Yes, product performance, size, and appearance can be tailored to meet your specific application requirements.

What insulation class do these reactors utilize? Our reactors use Class F or higher insulation standards.

Are these units compliant with international standards? Yes, they are designed in accordance with GB19212 and GB1094.6 standards.

What is the operating voltage range? These units are rated for 380V/440V systems.
