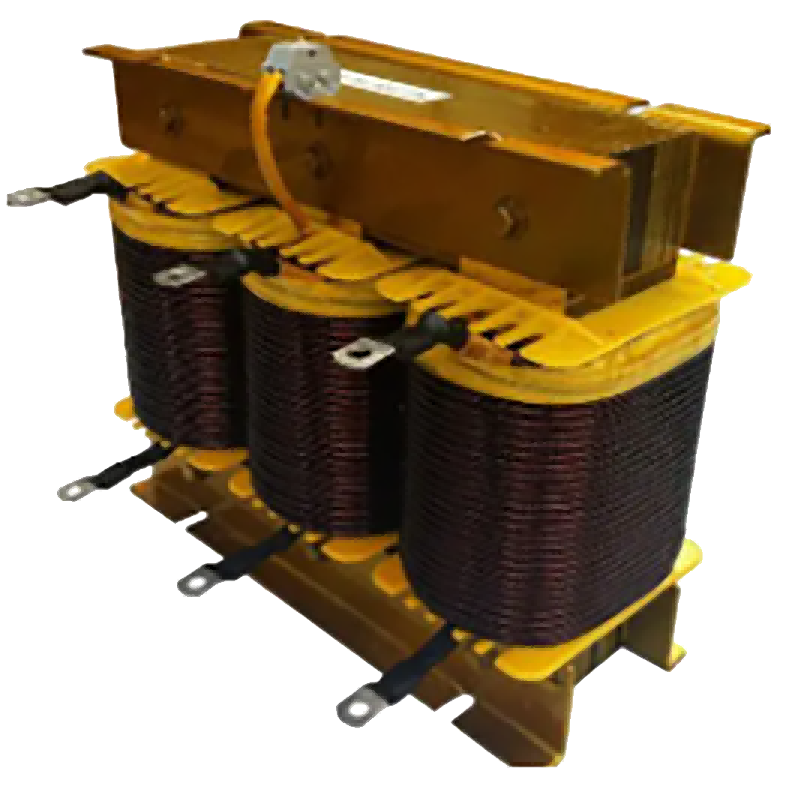

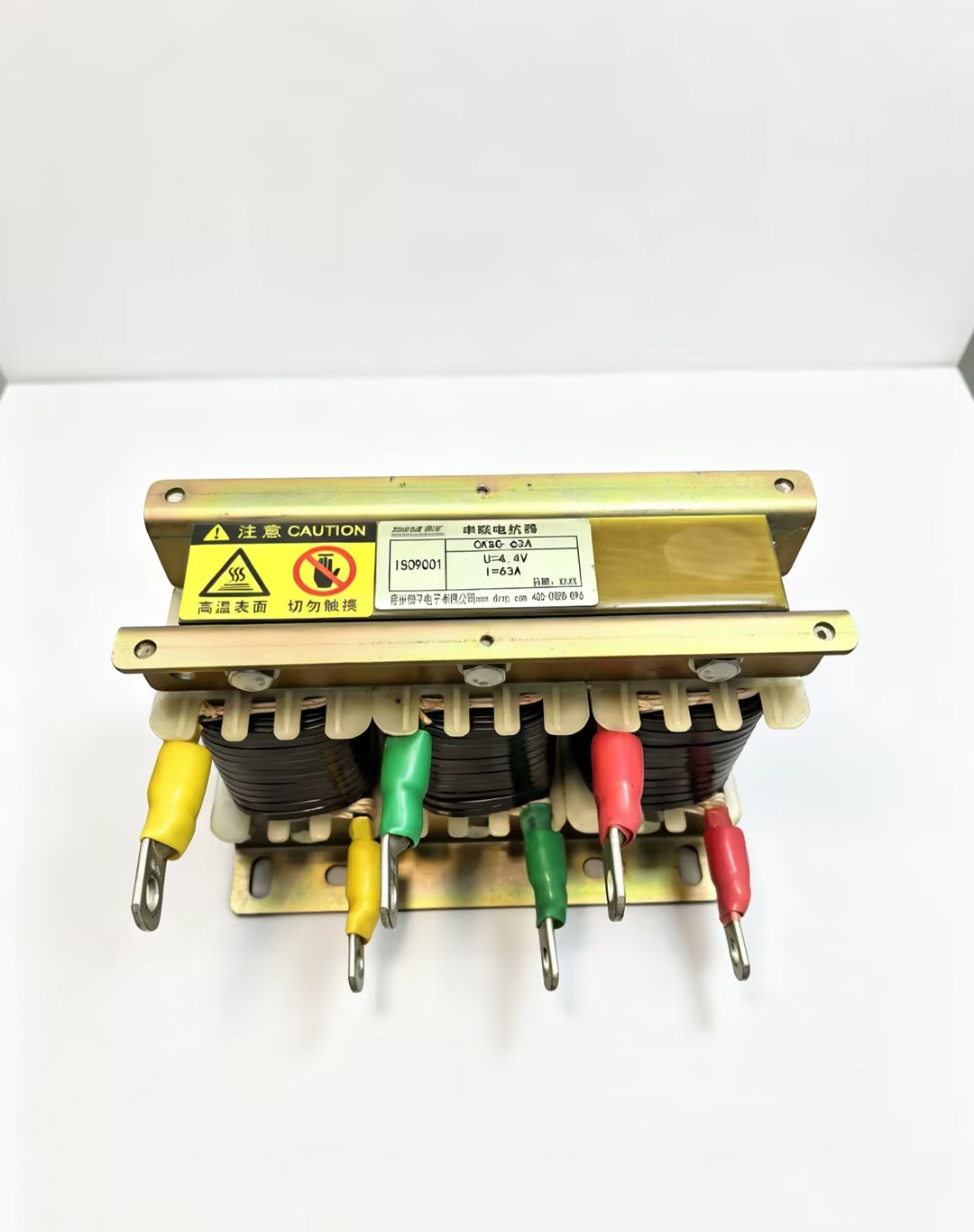

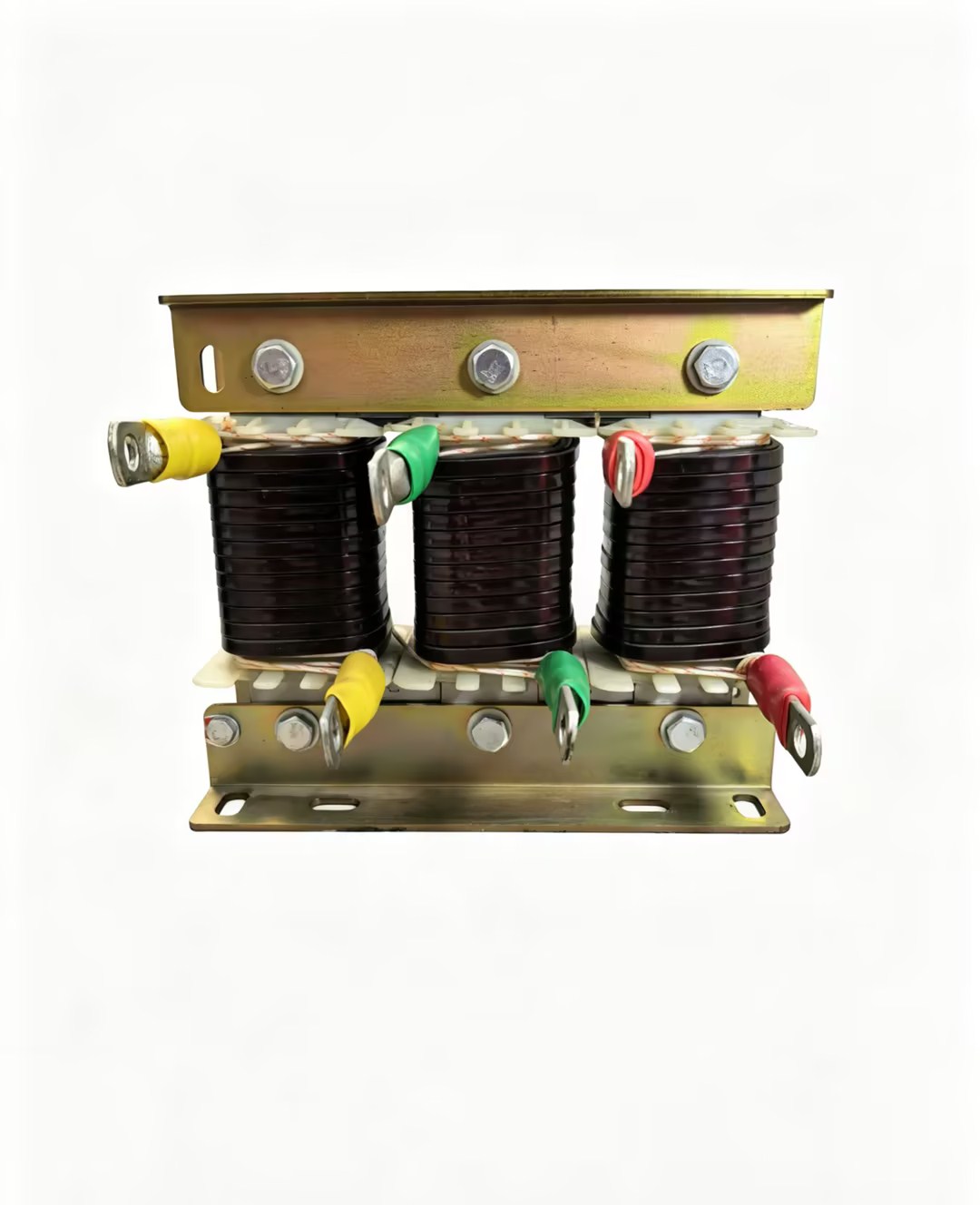

High Harmonic Suppression Series Reactor Effectively suppresses high-order harmonics, reduces resonance & surge current. Improves power quality, protects capacitors & equipment. Widely used in power compensation & distribution systems.
Send Inquiry

Product Description

Effectively suppress high-order harmonics, limit closing inrush current, improve system power factor, prevent harm caused by harmonic capacitor, and avoid excessive amplification and resonance of power grid harmonics caused by capacitor device access.
Technical Data
Rated Voltage400V/660V/50HZ
Rated Current5A-1600A
Hi-pot Test3.5kV, 60sec
Insulation ClassF or above
Reactor Impedance1%
Ambient Temperature-25°C to 45°C
Protection CategoryIP00
StandardsGB19212.1-2008 / GB19212.21-2007 / GB1094.6-2011

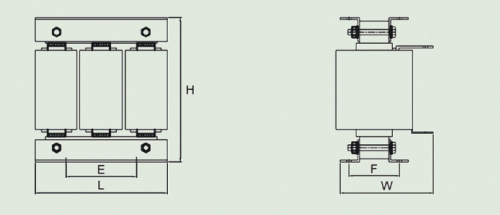

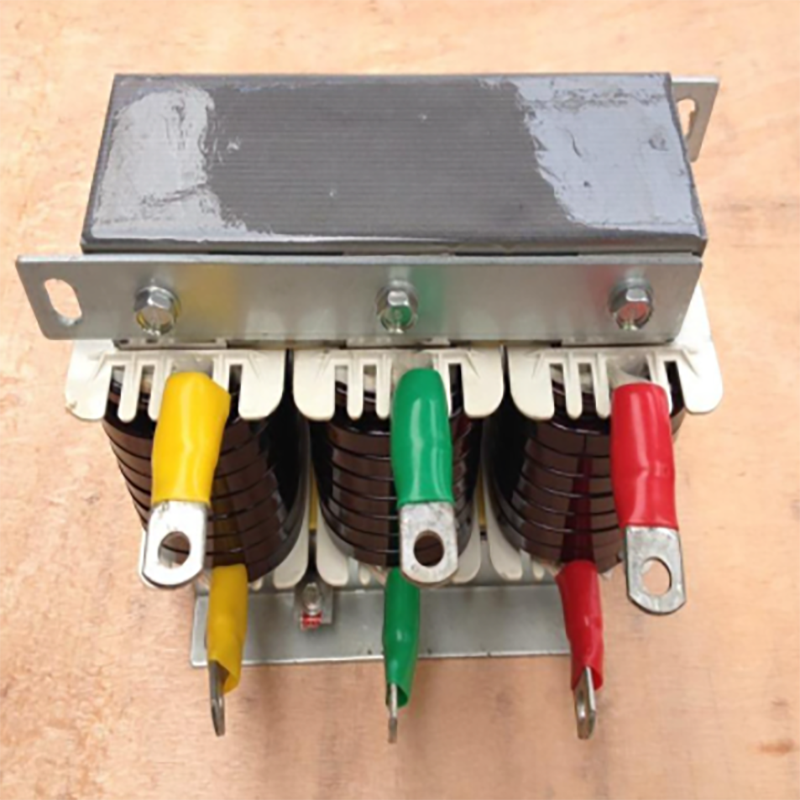

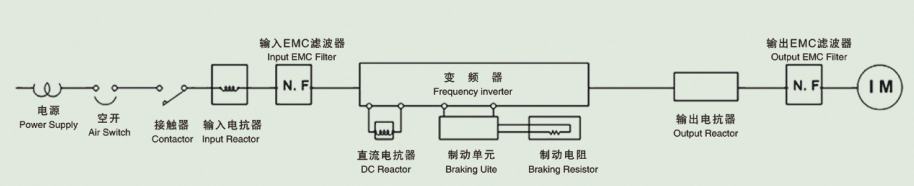

Reactor 1 Reactor 2 Three phase AC input reactor Reactor 4
Type Selection Table
ModelPower (KW)Inductance (mH)Rated Current (A)Dimensions (L*W*H)
5A1.51.45160*120*140
10A3.70.7010160*120*140
20A7.50.3520160*120*140
50A18.50.1450160*130*140
1000A4000.0071000290*230*310

Note: The above specifications are standard products. Product performance, size, and appearance can be customized according to specific customer requirements.

Frequently Asked Questions (FAQ)
Q: What is the primary function of this reactor?A: It is designed to suppress high-order harmonics and limit inrush current.
Q: Can these units be used in harsh temperature conditions?A: Yes, they are rated for operation between -25°C and 45°C.
Q: Does the product support customization?A: Yes, dimensions and performance can be tailored to meet your specific application needs.
Q: What insulation class does the equipment feature?A: The reactors are built to insulation class F or higher.
Q: Are these reactors compliant with industry standards?A: Yes, they are designed according to GB19212 and GB1094.6 standards.
