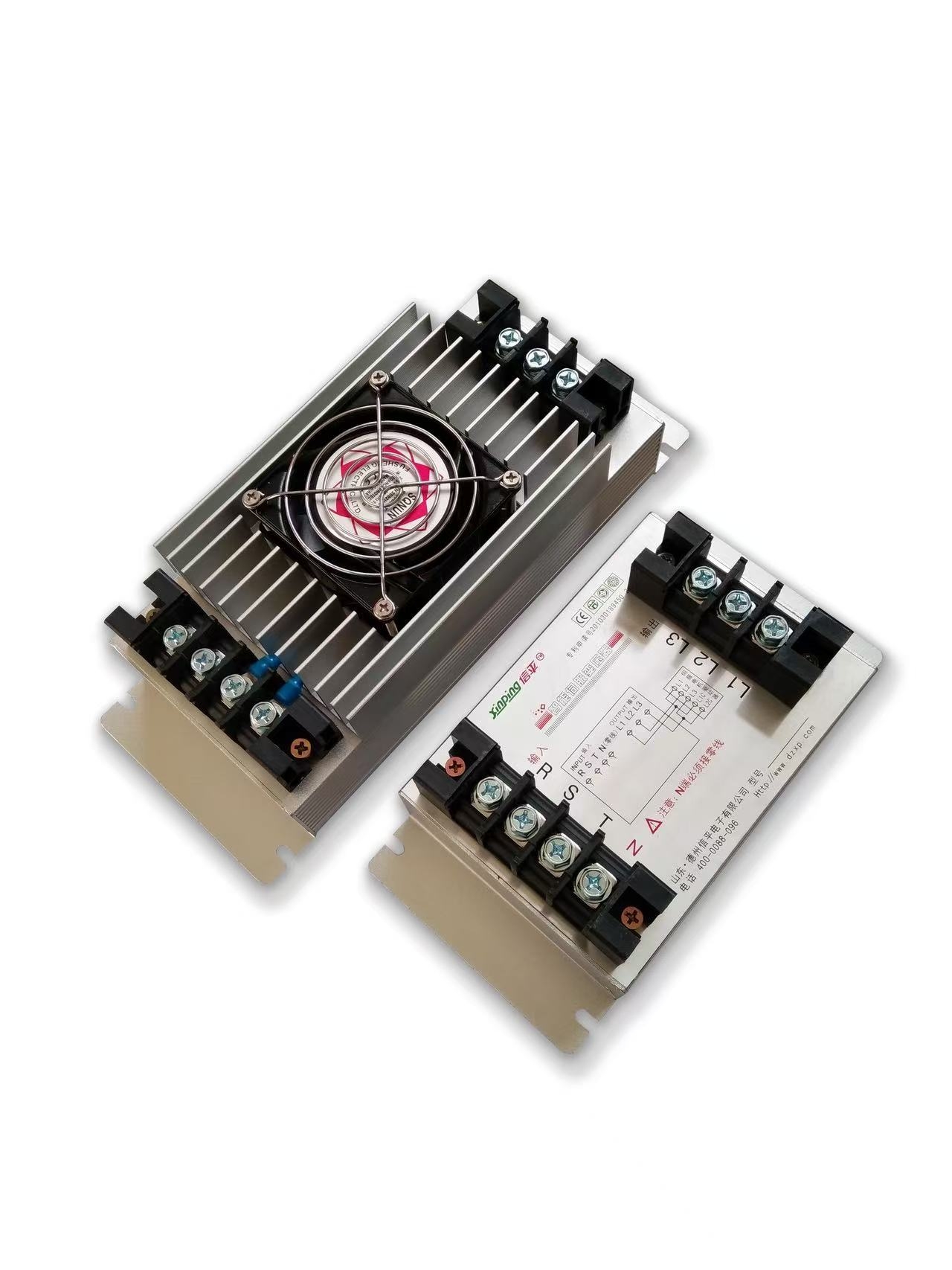

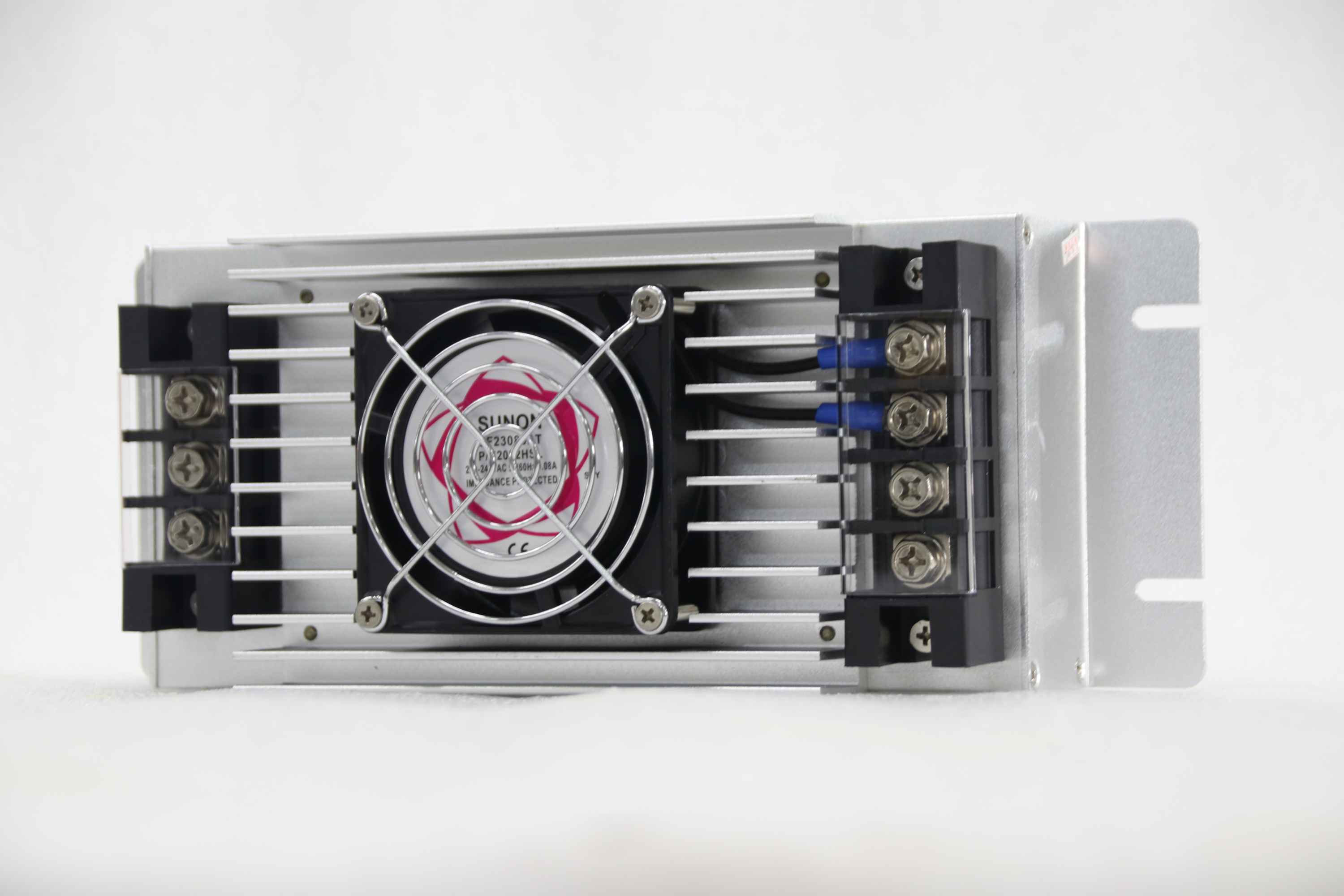

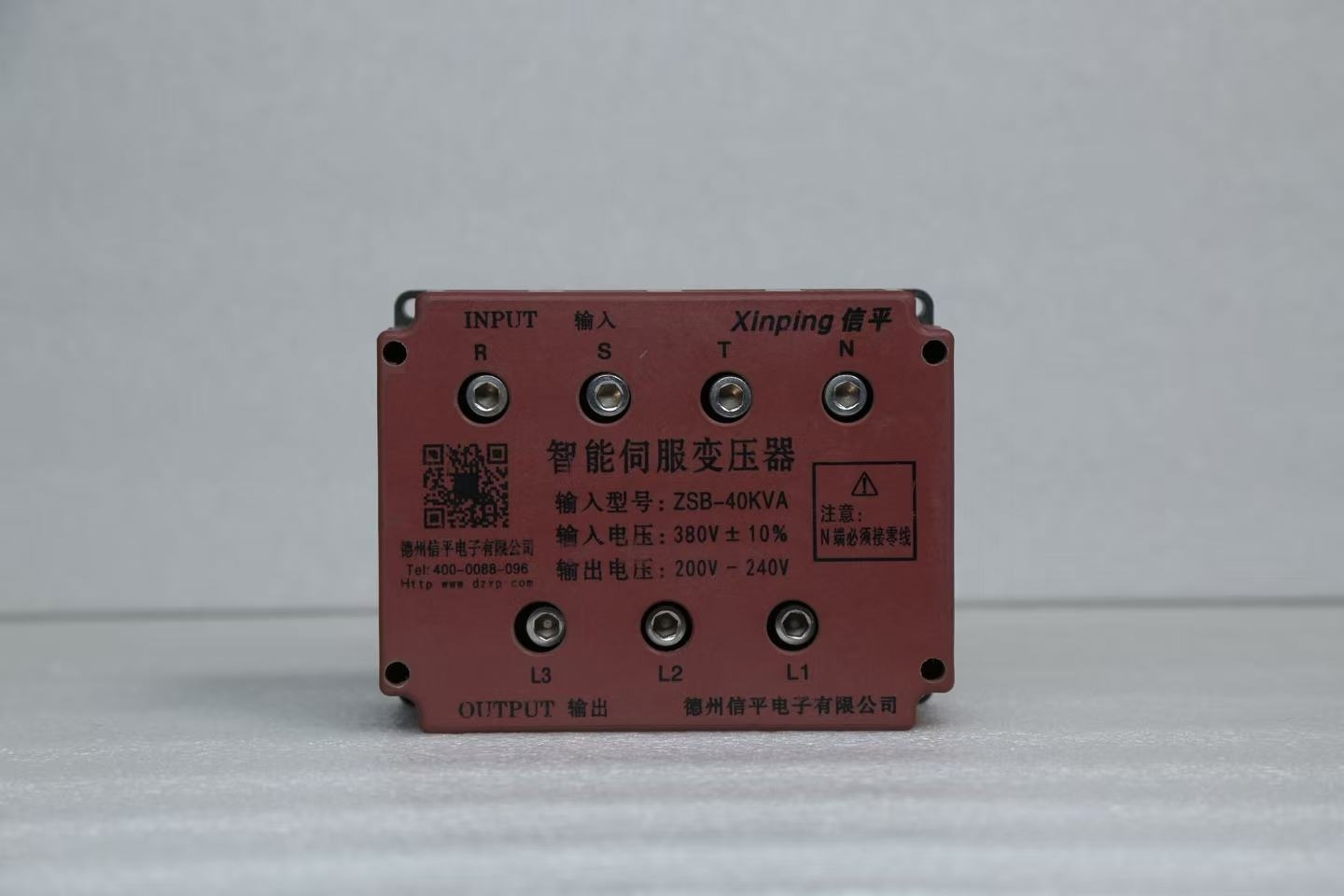

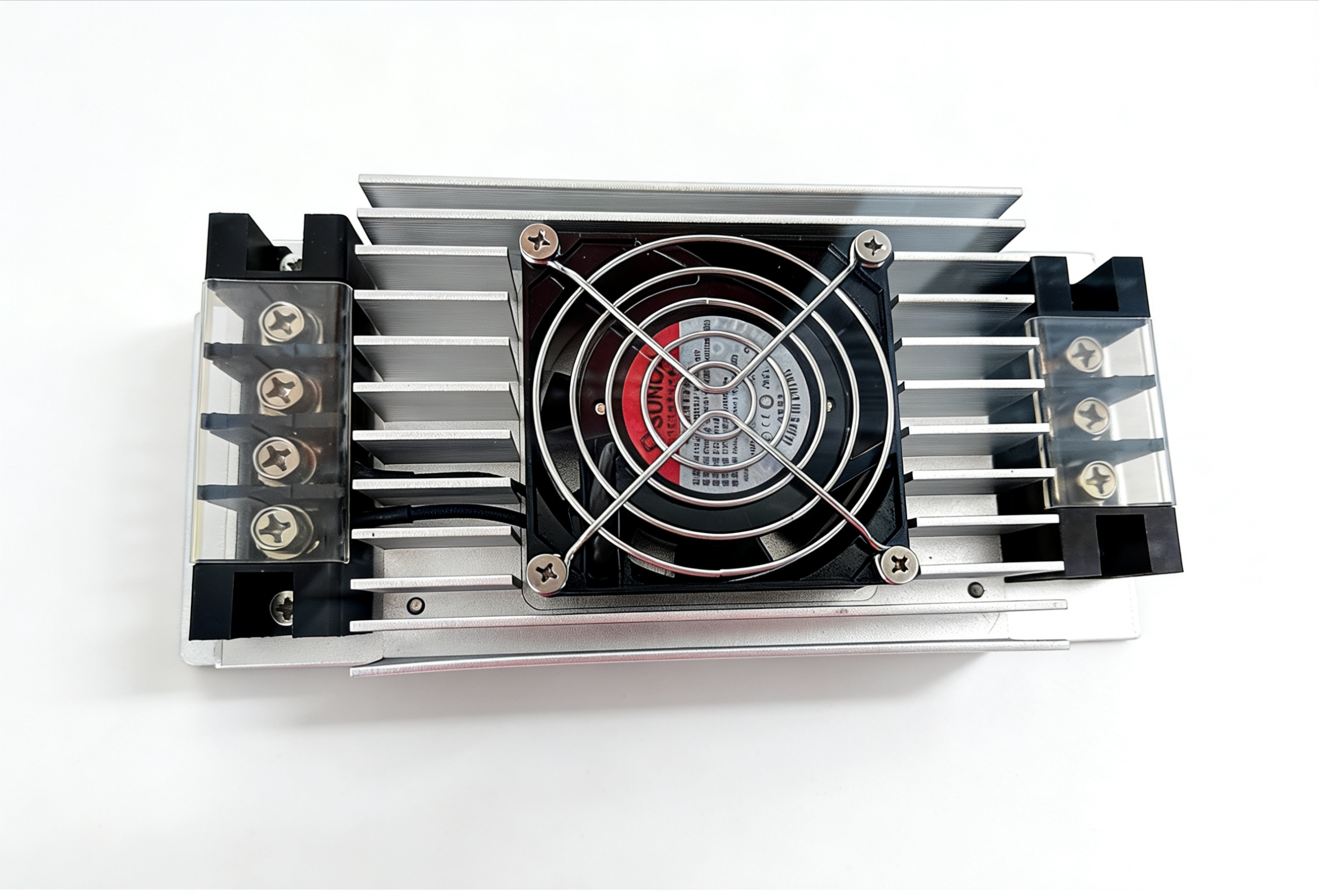

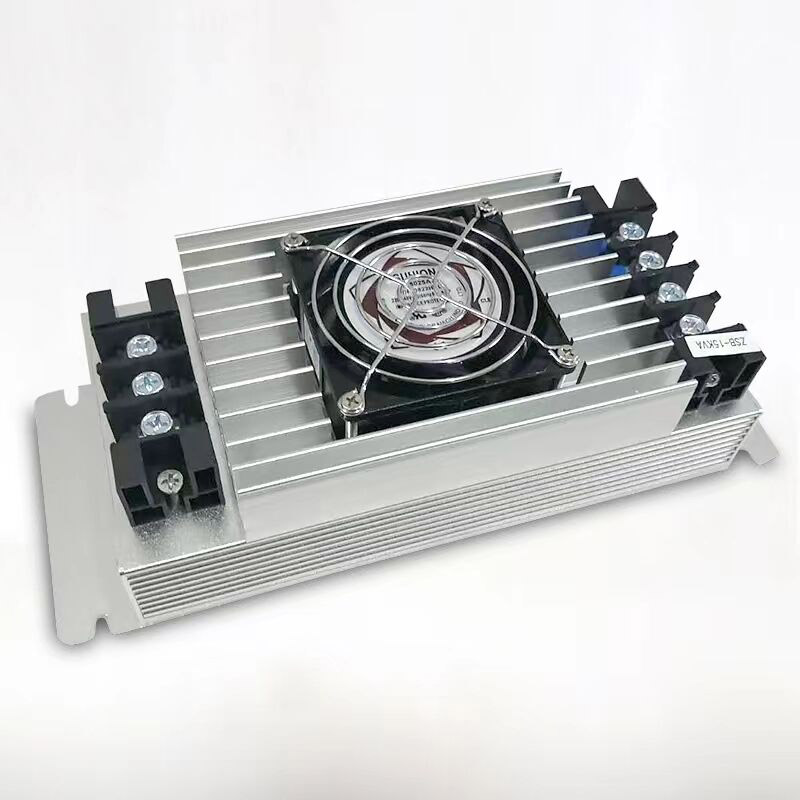

Intelligent Servo Transformer High-efficiency, compact three-phase servo transformer with electronic regulation. Provides stable voltage, noise suppression, and overload protection. Ideal for servo drives, automation equipment, and precision motion control systems. Scope of application It is applicable to all kinds of three-phase 220VAC servo drivers with three-phase 380VAC input voltage and three-phase 220VAC output voltage.

Send Inquiry

Product Description

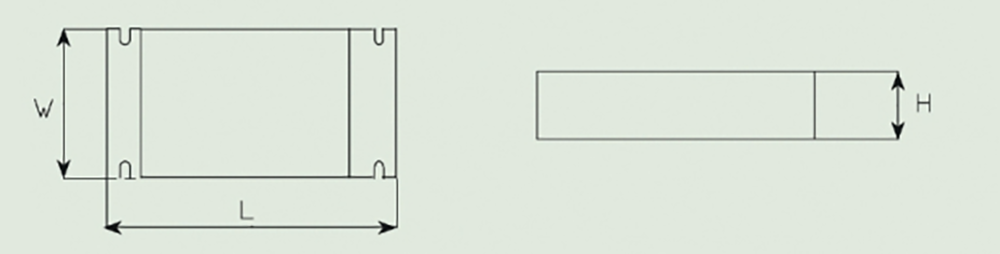

Model	Input Voltage (VAC)	Output Power (KVA)	Suitable Servo Driver	Overall Dimension (LxWxH mm)	Installation Dimension (mm)
ZSA-1KVA	380V ±10%	1	1	215x110x69	187x102
ZSA-2KVA		2	2	215x110x69	187x102
ZSA-3KVA		3	3	215x110x69	187x102
ZSA-4KVA		4	4	215x110x69	187x102
ZSA-5KVA		5	5	215x110x69	187x102
ZSA-6KVA		6	6	215x110x69	187x102
ZSA-7KVA		7	7	215x110x69	187x102
ZSA-8KVA		8	8	215x110x69	187x102
ZSA-9KVA		9	9	215x110x69	187x102
ZSB-10KVA		10	10	285x110x75	255x102
ZSB-15KVA		15	15	285x110x75	255x102
ZSB-20KVA		20	20	285x110x75	255x102
ZSB-30KVA		30	30	285x110x75	255x102
ZSB-40KVA		40	40	285x110x75	255x102
ZSB-50KVA		50	50	285x110x75	255x102
ZSB-60KVA		60	60	285x110x75	-

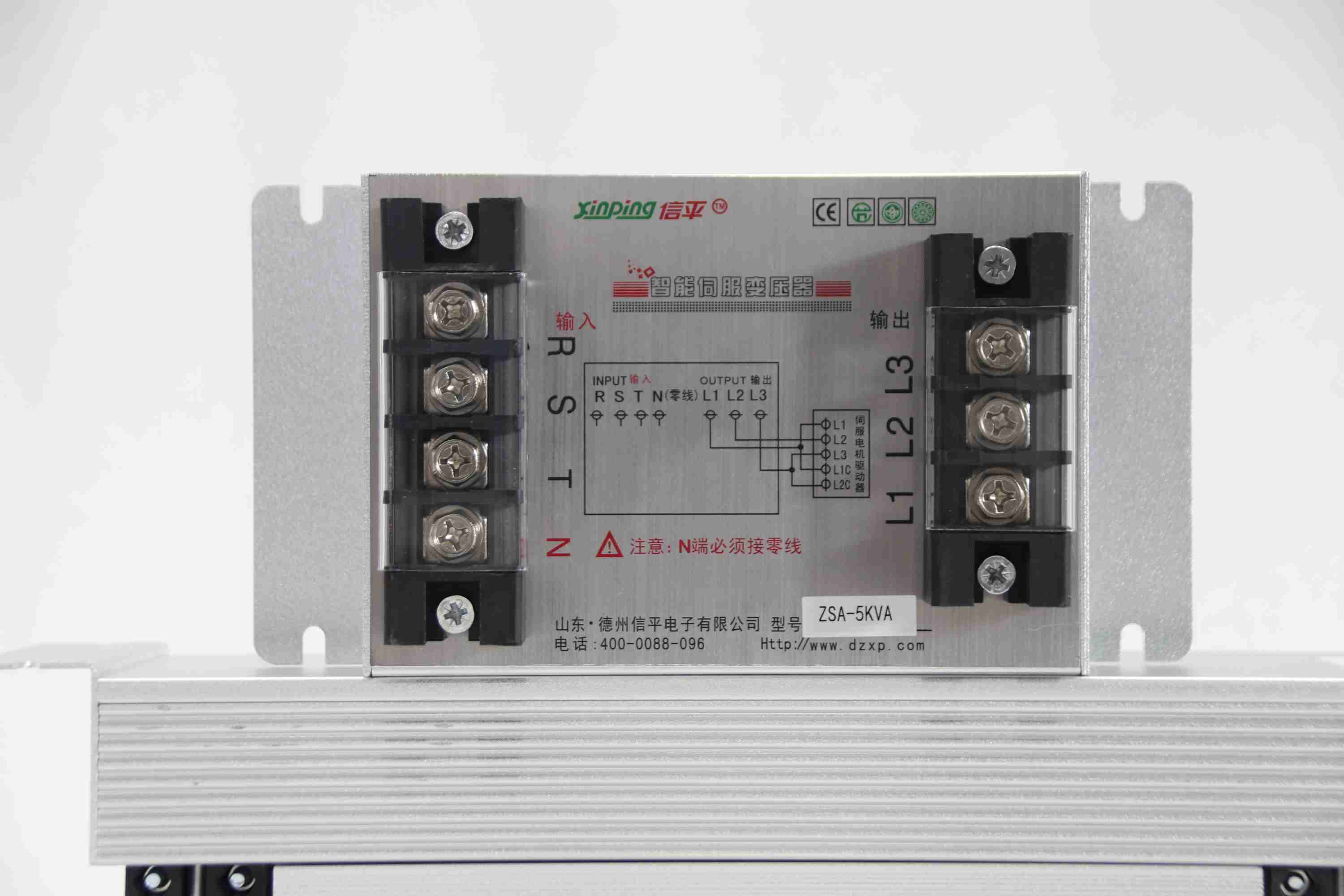

Intelligent demand adjustment for automatic current control.
Compact design allowing for flexible installation and space optimization.
High safety and reliability with a service life exceeding twenty years.
Cost-effective alternative to traditional industrial frequency transformers.
Superior performance: 99.8% high efficiency, excellent stability, anti-interference, and low energy consumption.
