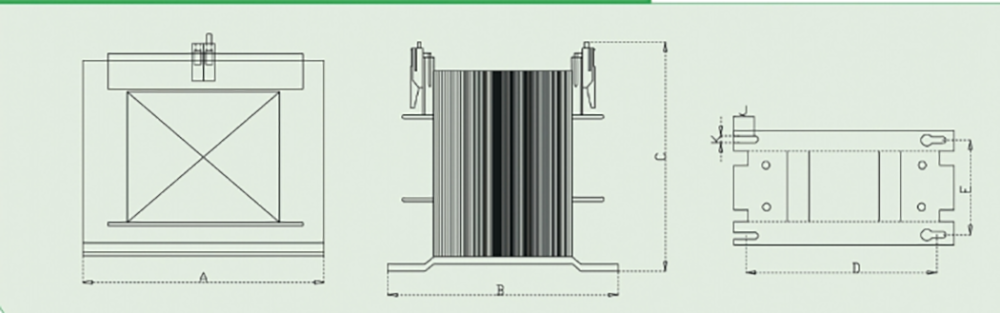

| Model (VA) | Rated Input | Rated Output | Dimension (mm) | D*E (mm) | Bobbin (mm) | K*J (mm) |
|---|---|---|---|---|---|---|
| JBK5-25 | 220V, 380V Or customized | 6.3V - 380V Or customized | 66*60*70 | 60*40 | 22*30 | 8*11 |
| JBK5-50 | 76*64*84 | 64*43 | 25*35 | 8*11 | ||
| JBK5-100 | 86*100*95 | 70*68 | 28*45 | 8*11 | ||
| JBK5-500 | 150*111*145 | 120*81 | 50*55 | 8*11 | ||
| JBK5-1000 | 150*136*145 | 120*106 | 50*80 | 8*11 | ||
| JBK5-5000 | 230*230*240 | 190*165 | 76*110 | 8*11 |
Gas shielded argon arc welding is used for the connection between vertical silicon steel sheets and the base plate, creating a robust, integral structure. The base plate features one-step molding for enhanced installation accuracy compared to the JBK3 series. Utilizing high-quality anti-corrosion alloys, these transformers ensure superior grounding reliability and product durability, offering low power consumption and safe operation in diverse applications.
1. Are the input and output voltages customizable?
Yes, both input and output voltages can be customized to meet your specific requirements.
2. How does the JBK5 series differ from the JBK3 series?
The JBK5 series features one-step base plate molding, offering significantly higher installation dimension accuracy.
3. What materials are used to ensure durability?
We use high-quality anti-corrosion alloy materials to improve grounding capability and overall quality.
4. Is the transformer safe for wiring?
Yes, the design emphasizes safe wiring, reliable operation, and wide application potential.
5. What is the welding technique used?
We employ gas-shielded argon arc welding to ensure a strong, clear, and integral structure.
6. Can these transformers be used for high-power needs?
The JBK5 series ranges from 25VA up to 5000VA, covering a broad spectrum of power requirements.
